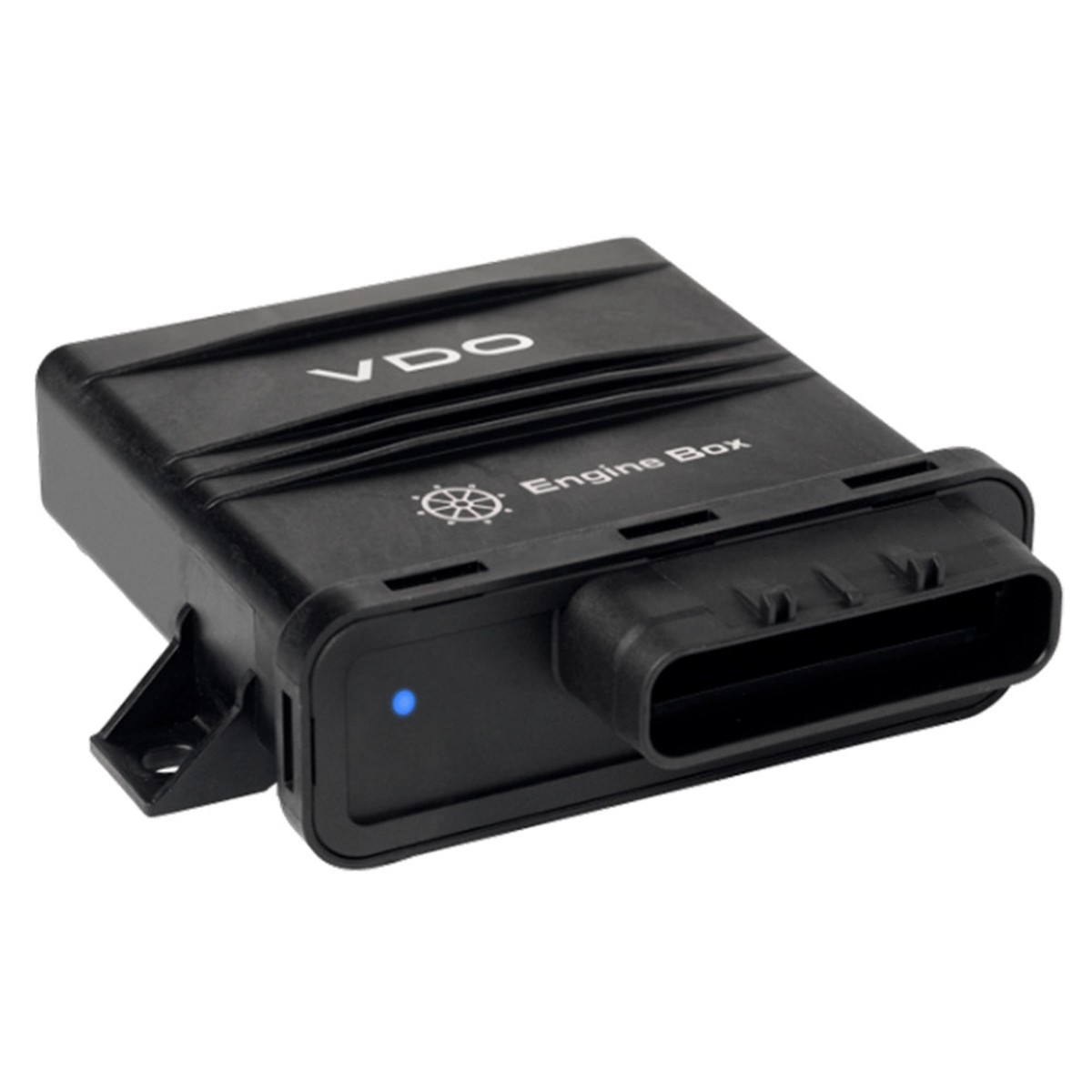

EngineBox – Double EngineThe EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000 and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors.The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.The Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software tool are needed to configure this Engine Box. Features:Analog to NMEA 2000 gatewayJ1939 to NMEA 2000 gateway2 Models for single engine and dual engine configurationsCompact designStatus LEDOperating temperature range -40C/+85CTechnical Specifications:1x J1939 (2x J1939 Dual Engine)1x M12 5 pins NMEA 20001x Input 04 kHz for RPM (2 inputs with Dual Engine Model)4x Inputs 0400 Ohm (up to 8 inputs with Dual Engine Model)2x Inputs 420 mA1x Input 05 V (2 inputs with Dual Engine Model)In the Box:Engine CableCable HarnessSafety Instructions*Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:Gauge Size: N/ABox Set: NoVoltage – Input Range (Volts): 8-16vGauge Type: MultifunctionBox Dimensions: 4″H x 6″W x 6″L WT: 1.45 lbsUPC: 7640178724433Brochure (pdf)
