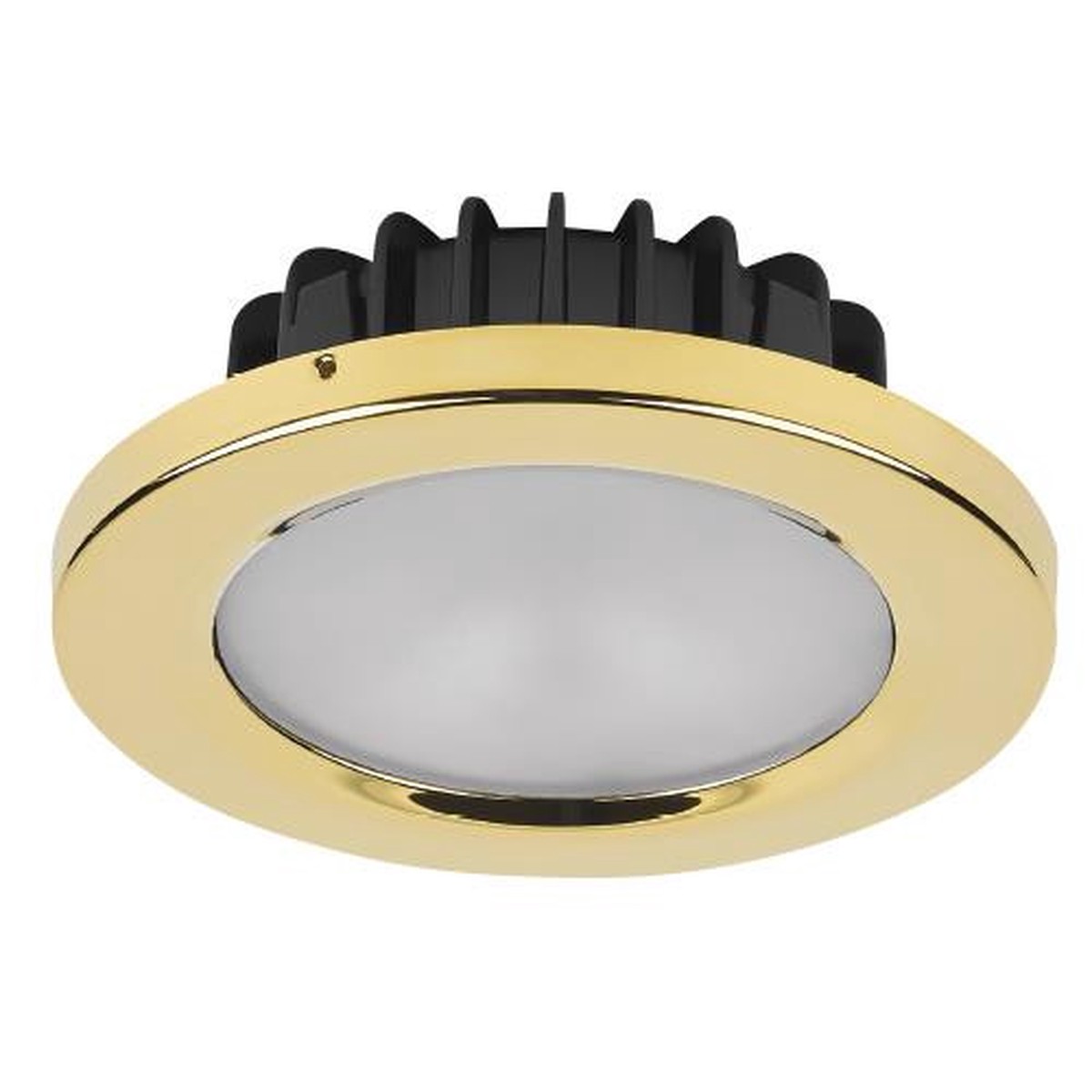

Pool PowerLED, 10-40VDC Featuring 2-wire power & dimming, Pool easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Pool offers single or bi-color dimming when paired with Imtra’s single or dual channel PWM dimmer module. Pool features a traditional raised-round bezel in several finishes. Pool is securely mounted with three screws and is ideal for hard ceilings (e.g. fiberglass or wood). It is a good choice for wet areas (e.g. hard tops, arches, walkway overhangs, shower stalls). Made in the USA and covered by a 5-year warranty! Twist-on round stainless steel bezel design Convenient 2-wire power & dimming(3-wires for Bi-Colors) Bi-color dimming using single momentary switch Integrated current controlled drive circuitry Screw mount fastening for watertight installations Trim Ring (Bezel) Finish/Material Available in White, Stainless Steel or Brushed Stainless Steel Housing Finish/Material Black Electrophoretic Aluminum Lens Material Frosted glass Trim Ring (Bezel) Dimensions 3.43″ (87mm) dia Cut-out Dimensions 2.40″ (61mm) Recessed Depth 1.05″ (27mm) Dimensions See dimensional drawing Integrated Switch No Input Voltage 10-40VDC Halogen Equivalency 25W Power Consumption 4.7W Driver Integrated Output Color Warm White Luminous Flux 183 lms Correlated Color Temperature (CCT) 2800K (White LED) Color Rendering Index (CRI) 85 Lifetime Hours 50,000 hrs Dimmer Compatibility ILIM80130, ILIM80140 Dimmer Control Interface Momentary Push-Button Dimming Range 5-100% Install Location Exterior (hard tops, overhangs, showers) Ingress Protection IP65 (applies only to frontal water exposure, i.e. Exposed surface) Class III Electrical Protections Reverse Polarity, Transient & Spike Protection Certifications & Compliance CE-EMC, ROHS Manufacturer Imtra Warranty 5 Years / 1 Year Finish Available SKUs ILIM62000, ILIM62001, ILIM62002, ILIM62100, ILIM62101, ILIM62102, ILIM62200, ILIM62201, ILIM62202
